Electric Discharge Machining [EDM] Wires

Electric Discharge Machining [EDM] Wires

DESCRIPTION

Our EDM wires, which are made of carefully selected materials, enable high-speed and high-precision cutting. We offer a wide variety of electrode wires for different applications to meet various needs.

Features:

  • The wire is manufactured and quality-controlled in Japan.
  • Many W-EDM machine manufacturers recommend the use of our wire in their machines.
  • Stable discharging is enabled with our wire, as carefully selected materials are used.

How to select the PROTERIAL EDM wire:

Well balanced cutting performance

⇒ HBZ-K/-U or HBZ-MU

For Line-mark control cutting

⇒ HBZ-SS

For Faster speed cutting

⇒ HBZ-B

For Better surface roughness cutting

⇒ HIH

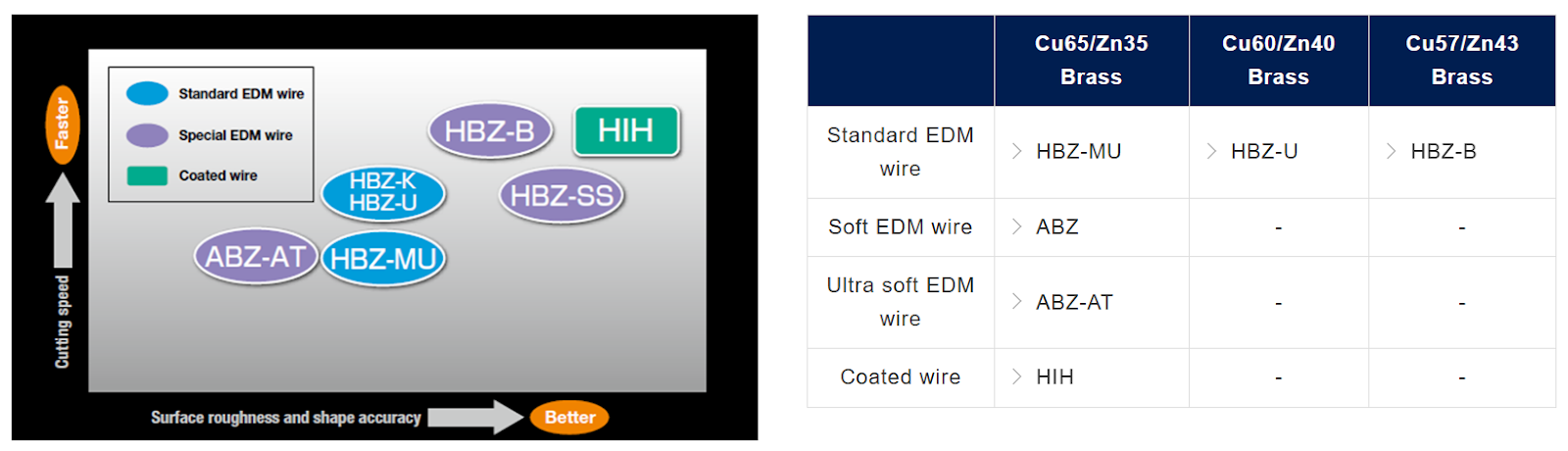

Position of our EDM wire

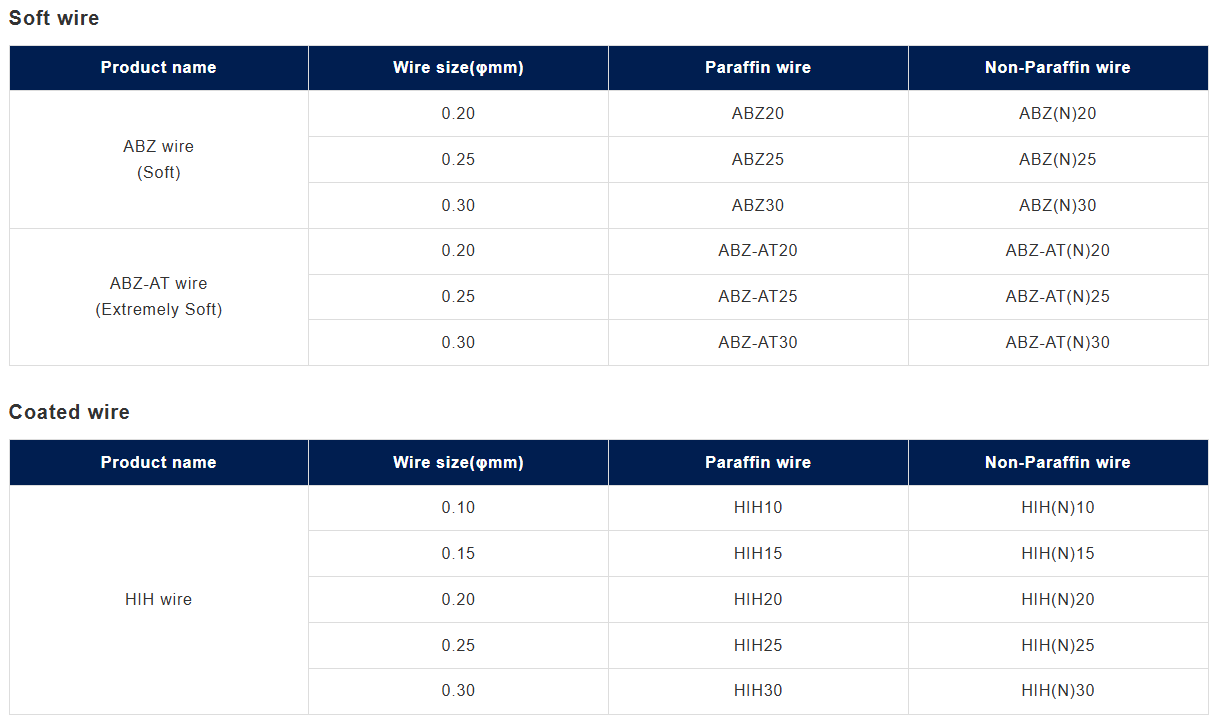

Product Information
Product Specification
Product category Product name Standard size*1
(φmm/inch)		 Wire tolerance
(mm/inch)		 Tensile strength
(MPa)		 Elongation
(%)
Standard
EDM wire
0.10/0.004 ±0.001/±0.00004 Min 980 Min 0.4
0.15/0.006
0.20/0.008 -0.002~0/-0.00008~0
0.25/0.010 Min 932
0.30/0.012
0.40/0.016 Min 850
0.10/0.004 ±0.001/±0.00004 Min 980 Min 0.4
0.15/0.006
0.20/0.008 -0.002~0/-0.00008~0
0.25/0.010 Min 932
0.30/0.012
Special
EDM wire
0.20/0.008 -0.002~0/-0.00008~0 Min 883 Min 0.4
0.25/0.010 Min 784
0.30/0.012
0.20/0.008 -0.002~0/-0.00008~0 Min 441 Min 15
0.25/0.010
0.30/0.012
0.20/0.008 -0.002~0/-0.00008~0 Max 490 Min 25
0.25/0.010 Max 450
0.30/0.012
0.10/0.004 -0.001~0/-0.00004~0 Min 980 Min 0.4
0.15/0.006
0.20/0.008 -0.002~0/-0.00008~0
0.25/0.010 Min 932
Coated Wire
0.10/0.004 ±0.001/±0.00004 Min 980 Min 0.4
0.15/0.006
0.20/0.008 -0.002~0/-0.00008~0
0.25/0.010 Min 932
0.30/0.012

Note: Please contact us for the availability of custom sizes, other than standard sizes.
