Cylinders and Screws for Plastic Molding Machines

H-ALOY™ Cylinders and YPT™ Screws for Plastic Molding Machines

DESCRIPTION

The H-ALOYTM cylinders lined with nickel- or cobalt-based alloy and the high-performance YPTTM screws are designed for plastic molding machines. With excellent resistance to abrasion and corrosion, both products, when used together, help to stabilize the operation of the plastic molding process.

High strength and High pressure resistance NEOC Cylinder Series

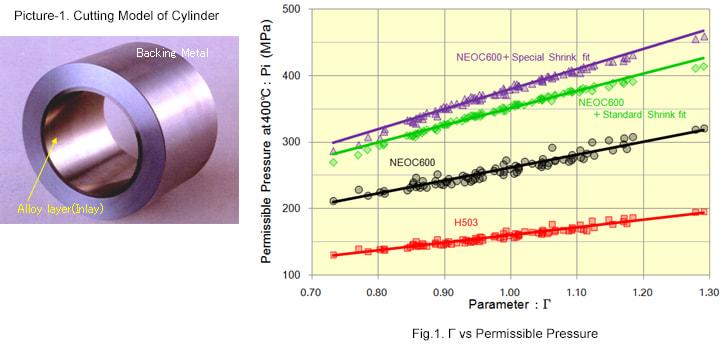

Our high-performance cylinders have a structure of hollow backing metal with our original inlay alloy material, which has a strong metal-to-metal bond in boundaries. Picture-1 shows a cutting model to see the structure.
The NEOC cylinder series, which has several material types of inlays and features high pressure resistance by new developed high strength backing metal, has acquired customer’s favourable reputation since its successive release of several materials. The representative NEOC600 among them has high strength in both inlay and backing metal, which realizes great high-pressure resistance. Fig.1 shows the comparison of pressure resistance performance between the case of NEOC600 cylinder alone and the case of NEOC600 cylinder with sleeve shrink fit structure.

Table 1. Comparison of Mechanical properties between NEOC600 and NEOC1000
Material Inlay Alloy Backing Metal Hardness Bending Strength of Inlay
(MPa)		 Proof Stress of Backing Metal
(MPa)
Inlay (HRC) Backing Metal (HS)
NEOC600 Ni Base *HPS700 50-60 38-42 930-1030 550-630
NEOC1000 Ni Base
+Hard Particles		 *HPS700 57-66 42-48 700-900 620-780
SCM440 57-66 28-40 340-420

*HPS700 is a material symbol named in our own way.

There are also several kinds of materials such as NEOC100 with inlay alloy Fe base and NEOC400 with inlay alloy Co base. We can also suggest optimum shrink fit cylinder structure of other cylinders as well as NEOC600 Furthermore, we can study for other solutions to meet the customer’s requirement of special specifications based on various kinds of technologies we have been abundantly experiencing and accumulating so far. For further details, please feel free to contact us.

※Γ is the parameter value by our own way, which is determined by cylinder’s inside diameter and outside diameter. Even if the same Γ, our shrink (standard and special) fit cylinder shows higher permission pressure than the one without shrink fit.

H-ALOYneo Cylinder Series

We have refurbished our long seller H-ALOY™ Cylinder series with the name of H-ALOYneo, which is characterized by adopting new backing material with similar concept of NEOC series. It increases backing metal strength while H-ALOY inlay performance remains unchanged. We believe it makes our cylinders used more widely in the future.

Table 2. Comparison of Mechanical properties between H503 and H503neo
Material Inlay Alloy Backing Metal Properties of Backing Metal Properties of Inlay
Proof Stress
(MPa)		 Tensile Strength
(MPa)		 Hardness
(HRC)		 Bending Strength
(MPa)
H503 Ni Base SCM440 376 778 50-60 490-590
H503neo Ni Base Equivalent to ISO 46MnVS6 579 924

※The properties of backing metal on Table 2 represent a value by actual measurement. We have several kinds of materials such as H305neo and H831neo for Fluorine resin molding. For further details, please feel free to contact us.

YPT™ Screw

We possess the all screw manufacturing process, which consists of material design, raw material manufacturing, heat treatment, machining and final inspection. Optimizing each process ensures to provide high performance screws with stable quality for users. The following is the list of YPT™ screw materials.

Table 3. YPT™ Screw Lineup
Material Hardness
(HRC)		 Feature Application
YPT4 58±2 Abrasion&Corrosion Resistance Middle-Large Size Screw
YPT42 58±2 Abrasion&Corrosion
Resistance High Strength		 Small-Middle Size Screw
Screw Tip Set
YPT71 60±2 High Abrasion&Corrosion Resistance Molding Plastic with high GF content
