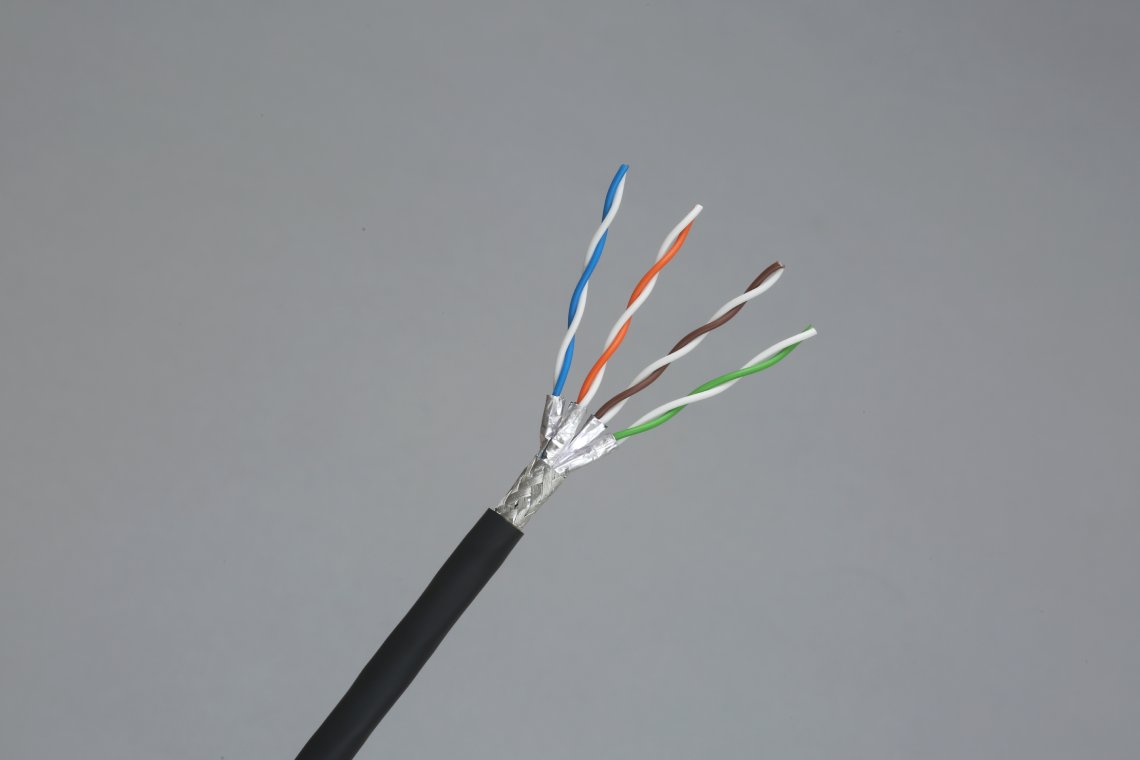

Category 7 (Cat 7) LAN Cables for High-speed Communications

Category 7 LAN Cables for High-speed Communications

DESCRIPTION

Cables for use in rolling stock must satisfy the fire safety requirements as specified in the applicable fire safety standards, and must pass a set of fire tests that measure flame-resistance, smoke generation, and toxicity. Utilizing our exclusive fire safety design technologies for rolling stock electrical wiring that Hitachi Metals has developed over the years, we have now launched CO-IREE-SB C7E(X), a rolling stock Cat.7 LAN cable. The unique cable structure and our exclusive highly flame retardant halogen-free outer sheath enabled us to realize a product that can simultaneously deliver both high-performance electrical characteristics and European railway fire safety.

Features of CO-IREE-SB C7E(X):

  1. Insulator
    • Micro foam technology*3 and multilayer extrusion technology successfully reduced dielectric properties and use of flammable insulation materials.
  2. Shielding tape
    • Our unique taping method shields electromagnetic interference, ensuring the electrical characteristics and high bandwidth of up to 600 MHz required by a Cat.7 LAN cable.
  3. Outer sheath material
    • Adoption of a highly flame-retardant halogen-free material exclusively developed by Hitachi Metals in the cable outer sheath satisfies fire safety standards, including the low smoke generation and low toxicity required by EN45545-2.

The introduction of CO-IREE-SB C7E(X) to our product lineup will help Hitachi Metals to respond to customer demand in Europe and Asia for higher performance in cables and wiring for use in rolling stock.

Proterial will continue to focus on the development of new materials and on contributing to the technological advancement of train vehicles through our solution technologies that target the range of challenges faced by our customers.

Structure of Cat.7 LAN cable for rolling stocks

Item CO-IREE-SB C7E(X)
Wire conductor size 24AWG
Insulator outer diameter Nominal 1.4 mm
Number of pairs 4
Cable outer diameter Nominal 8.6 mm

Transmission speed and bandwidth of the LAN cable (Benchmarks)

Item Cat.5E (2P) Cat.7 (4P)
Maximum transmission speed 100 Mbps 10 Gbps
Bandwidth 100 MHz 600 MHz

European railway fire safety standard (EN45545-2)

Test item Threshold
Test for vertical flame propagation for a single cable Burned part ≤ 540 mm
Unburned part > 50 mm
Test for vertical flame spread of vertically-mounted bunched cables Burned part ≤ 2.5 m
Smoke density Light transmittance ≥ 70%
Toxicity Toxicity index ≤ 6
  1. Ethernet
    • Ethernet is a registered trademark of Xerox Corporation. A computer network protocol widely used in wired local area networks (LANs) commonly used in offices and households across the world. It is designed to deliver efficient communications among numerous computers connected by LANs.
  2. EN
    • Abbreviation of “European Norm,” which specifies standards for products, services, and systems in the European market.
  3. Micro foam technology
    • A method to expand a melted thermoplastic resin with vast numbers of micro bubbles generated by a sudden pressure reduction after melting a large volume of foaming agent into the resin in a high-pressure environment.
